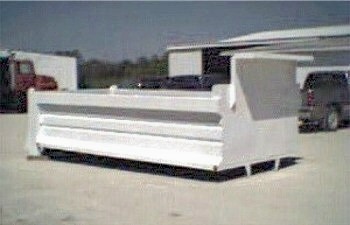

12-17 Ft. Square Beds
13' Beds starting @ $7,130.00 Installed
All 1/8" steel bed (upgrades available)
Main bean 8", channel 34" outside measurement
Cross members 3" channel 16" on center
Sides have 2 horizontal ribs 40" inside plus 8" for boards or top rails
45 degree bottom inside corner
Top rail 4" X 8" box rail
48" tall tailgate on 12-14 ft. beds
40" tailgate on 15-17 ft. beds (tall tailgates available)
Hydraulic tank 6" wide, 30" long & 24" tall - fits between the cab and bed
10' Beds also available
12-17 Ft. V - Demo Beds
14' Beds starting @ $7,880.00 Installed
V - Shaped Bed
All 1/4" steel, 40" inside, plus 8" pockets for board
90,000 lb. per square inch rating (steel)
48" tall tailgate, long hinges
Hydraulic tank 6" wide, 30" long, & 24" tall and fits between the cab and bed
4" square tube top rail
High lift tailgate cylinders available
10' Beds also available
Upclose picture of horizontal ribs (bed walls)
12-17 Ft. Demo Bed
14' Beds starting @ $8,880.00 Installed
Round Botton Bed
All 1/4" steel. 40" inside, plus 8" pockets for boards
90,000 lb per square inch rating (steel)
48" tall tailgate, long hinges
20 gallon hyd. tank fits between cab and bed
4" square tube top rail
High lift tailgate cylinders available
10' Beds also available
Standard Square & Demolition Pup Trailers
Prices Starting @ $13,000.00
Square bed is 1/8" steel & demo is 1/4" steel
Pup beds are made just like our dump beds
Main frame, box tubing: 1/4" X 4" X 8"
Spring hinge tongue
Hutch four spring suspension
22,500 lb PDC axles
Automatic slack adjusters
Outboard drums
22.5 disc wheels
Air Tailgate (High lift tailgate available on Demo)
THIS PRICES DOES NOT INCLUDE TIRES & WHEELS
PLEASE CALL FOR PRICES
Prices starting @ $24,500.00
40 ft main frame, 20 yard capacity box,
Hutch four spring suspension,
22,500 lb. PDC axles,
Automatic slack adjusters,
Outboard drums,
22.5 disk wheels
THIS PRICES DOES NOT INCLUDE TIRES & WHEELS
PLEASE CALL FOR PRICES
END DUMP TRAILERS
Prices starting @ $24,500.00
34 ft end dump, Half round bed,
Center point suspension,
Automatic slack adjusters,
Outboard drums & abs
22.5 disk wheels
THIS PRICES DOES NOT INCLUDE TIRES & WHEELS
PLEASE CALL FOR PRICES
